Hazards of Welding Fumes

Welding produces hazardous fumes that must be controlled to safeguard employee respiratory and overall health. Welding exposes metals to high levels of heat creating gaseous fumes and nano-particles. The hazards of welding fumes depend on the contents of the metal, the type of welding process, and the frequency of welding. Fume extractors must be utilized to protect employees from the hazards of welding fumes as NIOSH states that respirators alone do not provide adequate protection¹.

Metal Composition Effect on Hazards of Welding Fumes

First, the type of metal and concentration of each substance determines the level of severity of health hazards for welding fumes. The most common types of metal for welding are stainless steel, mild steel, and galvanized steel. The hazards of welding fumes by metal type are discussed below as well as a chart summarizing government regulations for each metal type.

Stainless Steel

Hexavalent Chromium Fumes – known human carcinogen for lung cancer³. Small amounts of exposure has lasting health effects. Can cause other types of cancer – sinonasal, oral, liver, bladder, and esophagus cancers⁴. Other effects: nose and throat irritation, asthma, wheezing, and damage to the skin, eyes, kidneys and liver⁵

Nickel Fumes – causes eye, nose, or throat irritation. Can cause dermatitis and lung problems⁶.

Mild Steel – an increased risk of lung cancer resulted from the inhalation of mild steel welding fumes despite less exposure to carcinogenic compounds⁷.

Iron Oxide Fumes – causes siderosis, a benign lung disease from particle lung deposit⁶. Siderosis is non-cancerous but can cause nasal and lung irritation.

Manganese Fumes – can cause manganism – condition similar to Parkinson’s disease and results in trembling, stiffness, slowing of motor movement, and in severe cases anxiety, depression and aggression⁸. Can also cause lung, liver, or kidney damage.

Galvanized Steel

Zinc Oxide Fumes – can lead to developing a condition called metal fume fever. Metal fume fever creates symptoms similar to the flu resulting in chills, muscle aches, nausea, fever, difficulty breathing, and decreased pulmonary function⁹.

Other Metal Types

Copper Fumes – may cause irritation in the eyes, nose or throat⁶.

Aluminum Fumes – irritates the respiratory system⁶.

Other Metal Dust – causes eye irritation, eye damage, and respiratory irritation⁶.

Types of Welding Effect on Hazards of Welding Fumes

Next, different types of welding affects the concentration of hazardous welding fumes thus increasing the health hazards. Below are the different types of welding listed in order of most fumes produced to the least amount of fumes by metal type.

Figure 2: Hexavalent Chromium Emission rates for 4 Welding Processes¹⁰

1) Shielded Metal Arc Welding (SMAW) – produces double to quadruple amount of concentrations of hexavalent chromium (See Figure 2 above)¹⁰. In several studies, shielded metal arc welding consistently poses the most hazards for welding fumes due to high concentrations of fumes³. See Figure 3 as well.

2) Gas Metal Arc Welding (GMAW) – concentrations are very close to shielded metal arc welding (Figure 3)¹. Other types of gas metal arc welding such as short circuit and pulsed spray have much less fume production (Figure 2)¹⁰. Short circuit produces a quarter of the shielded metal arc welding hexavalent chromium fumes¹⁰. Pulsed spray welding has the least amount of hexavalent chromium fume concentrations.

3) Flux Cored Arc Welding – From Figure 2, you can see flux core arc welding produces about half the amount as shielded metal arc welding¹⁰.

4) Gas Tungsten Arc Welding – From Figure 3, gas tungsten arc welding produces much less hexavalent chromium than gas metal arc and shielded metal arc welding¹.

Frequency Effect on Hazards of Welding Fumes

Lastly, the hazards welding fumes and lung cancer risks can vary depending on if a welder works as a project or maintenance worker. See Figure 4 for the mean cancer risk for a study of 30 Iranian workers over a lifetime. The main contributing factory was whether a welder worked full-time or did it on selective maintenance type basis. This study also compared previous respiratory ailments such as asthma to health workers, but the difference was minimal¹¹. In a 2017 Canadian population study, full-time welders chance of developing health hazards were compared to occasional welders¹². The full-time welders had a 16% increased chance of developing lung cancer, 78% risk for mesothelioma, 40% increased risk for bladder cancer and 30% increased risk of kidney cancer. Occasional welders had a 12% increased risk in developing lung cancer and 74% increased risk for mesothelioma with no increased risk for bladder or kidney cancer. This may mean that even minimal exposure to welding fumes on a part-time basis can pose health hazards as serious as developing cancer.

Welding Fumes Control Solutions

To properly control welding fumes, Sentry Air Systems offers a wide variety of fume control solutions. Sentry Air Systems provides benefits of flame retardant hoses and filter media, as well as small portable options adaptable for all types of welding situations. A self-supportive arm can be directed at the welding fume source or a “python” extra flexible hose allows the operator to attach the magnetic hood directly to a nearby surface.

Model 300 Welding Fume Extractor – SS-300-WFE

Best Use: Low volume welding jobs that may change location frequently. Features: • Self-supportive fume extractor arm moves to capture fume at the source. • Flame retardant arm and filter media • Heavy duty casters or wheels for easy mobility • Ability to house multiple filter media Filters Available: • HEPA (Up to 99.97% efficiency on particles down to 0.5 microns in size) • ASHRAE (Up to 95% efficiency on particles down to 0.5 microns in size) • ULPA (Up to 99.9995% efficiency on particles down to 0.12 microns in size) Air Volume: 350 CFM High

Model 400 Python Portable Fume Extractor – SS-400-PYT

Best Use: Welding in confined areas, elevated spaces, stainless steel pipe welding, and metal beams welding. Features: • 12’ L flexible hose (optional 25’ L hose) • Flame retardant arm and filter media • Heavy duty casters • Magnetic capture hood to attach to surface Filters Available: • HEPA (Up to 99.97% efficiency on particles down to 0.5 microns in size) • ASHRAE (Up to 95% efficiency on particles down to 0.5 microns in size) • ULPA (Up to 99.9995% efficiency on particles down to 0.12 microns in size) Air Volume: 700 CFM High

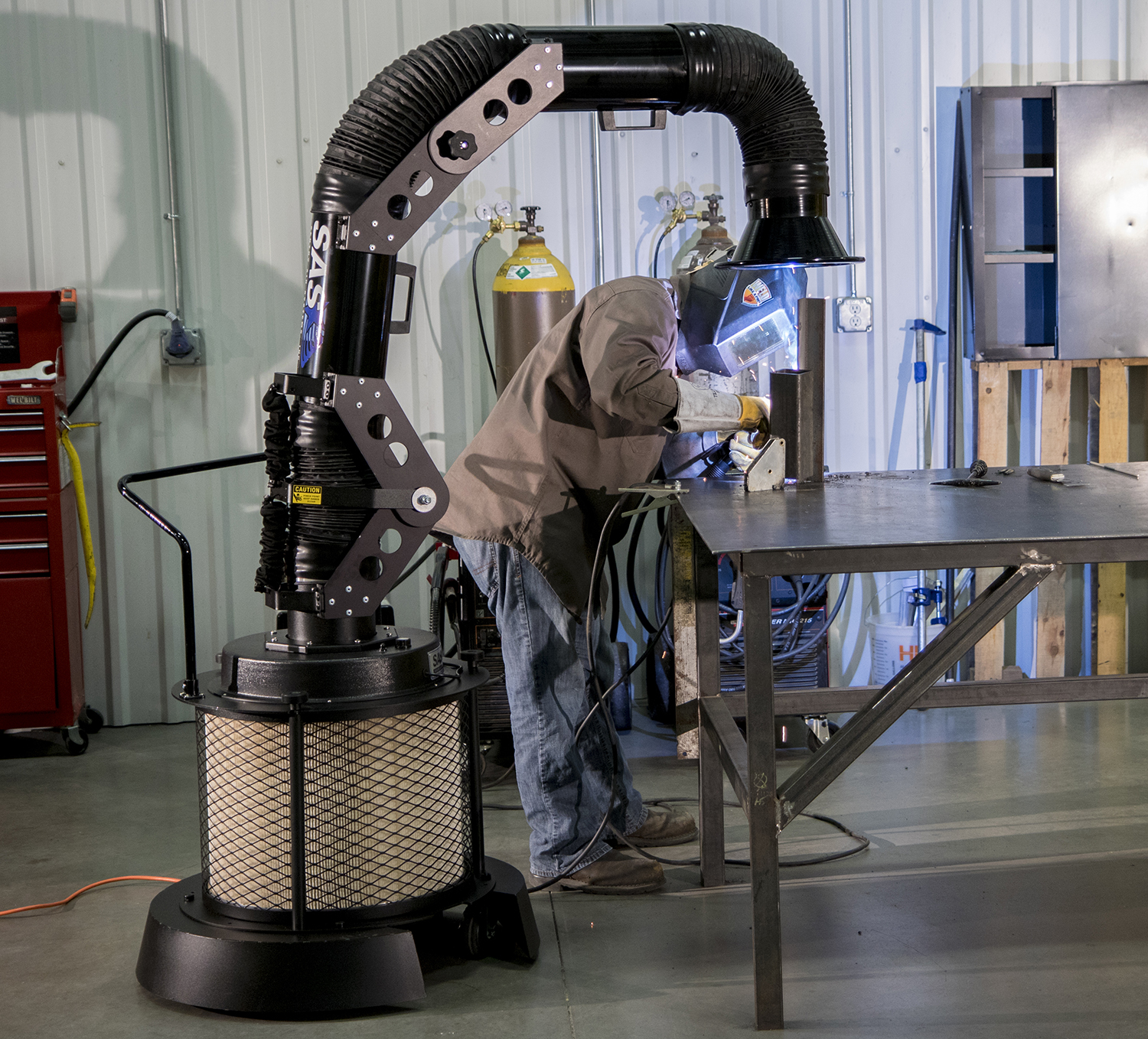

Rugged Air – Cleanable Filter Welding Fume Extractor – SS-RGD-7HDA

Best Use: High volume welding jobs with need for portability Features: • 7’ heavy duty easily movable arm • Flame retardant arm and filter media • Industrial grade casters and portability handle for easy mobility • Reusable cleanable filter that can be cleaned without removal from the unit Filters Available: Micro-Pleat Series 2 MERV 16 cleanable filter Air Volume: 530 CFM High

Model 500 Heavy Duty Industrial Welding Fume Extractor – SS-500-WFE-MP1

Best Use: High volume welding in a more stationary location. Multiple operator configurations available. Features: • 10’ heavy duty easily movable arm • Flame retardant arm and filter media • Industrial grade casters • Reusable cleanable filter that can be cleaned without removal from the unit • 360° rotating source capture arm Filters Available: (4) MERV 16 Micro-Pleat Series 1 Particulate Cleanable Filters Air Volume: 705 CFM High

Model 2000 Ambient Air Cleaner – SS-2000-FH

Best Use: Secondary device for welding room air cleaning, can be suitable for light welding Features: Hanging or mounted configurations Filters Available: MERV 7 pre-filter (up to 70% efficiency on particles down to 3 microns) MERV 14 ASHRAE (up to 95% efficiency on particles down to 0.3 microns) Air Volume: 2,000 CFM High

Reduce hazards of welding fumes today with welding fume control solutions!

Feel free to give us a call to help you select a fume extractor for your welding site! — 1-800-799-4609
