Table Sentry

The Table Sentry fume extractor offers an effective, quiet and economical solution for many benchtop operations which require fume extraction. This system incorporates an energy-efficient fan and high-quality filtration media to capture and purify harmful particulate. The most common filters utilized in this unit are HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE filtration [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filtration media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia].

Select Your Size:

100 Series

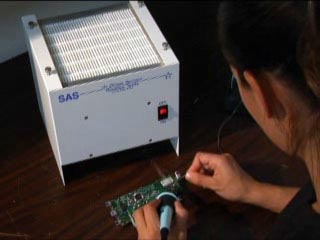

Benchtop Solder Fume Extractor
Loading the player...

100 Series Table Sentry Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 8"D x 8" W x 8"H      - 16 ga. carbon steel w/ polyester epoxy coating
    Total Weight: 8 lbs.     Motor: Fractional Horsepower

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Air Volume:
   Up to 80 CFM

   Electrical:    Sound Level:
    115/1/60, .3 amps     Approx. 62 dba @ 3' from inlet
    220/1/50, .2 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197

200 Series

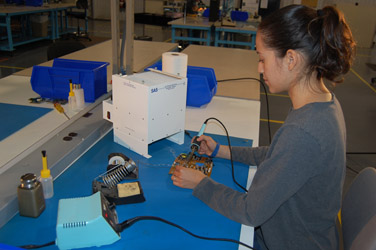

Ducted Mounted Fume Extractor
Loading the player...

200 Series Table Sentry Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 10.5"D x 8" W x 10.75"H      - 16 ga. carbon steel w/ polyester epoxy coating
    Total Weight: 12 lbs.     Motor: Fractional Horsepower

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Air Volume:
   Up to 100 CFM

   Electrical:    Sound Level:
    115/1/60, .3 amps     Approx. 58 dba @ 3' from inlet
    220/1/50, .2 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197
   U.S. PATENT #8,353,745

300 Series


Dual Arm Fume Extractor
Loading the player...

300 Series Table Sentry Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 18.5"D x 20" W x 19"H      - 16 ga. carbon steel w/ polyester epoxy coating
    Total Weight: 40-55 lbs.     Motor: Fractional Horsepower

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Air Volume:
   350 CFM High, Down to 25 CFM Low

   Electrical:    Sound Level:
    115/1/60, .3 amps     61 to 66 dba
    220/1/50, .2 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197
   U.S. PATENT #8,353,745

Table Sentry features and benefits

  • Highly Portable and Lightweight
  • Reliable, Low Maintenance Operation
  • Long Filter Life
  • Quiet Operation
  • Attractive Appearance
  • Simple, Quick "No Tool" Filter Change
  • Sturdy Construction
  • Optional Height Stand (up to 8.75” H)
  • Optional Velometer

Applications

Soldering
Light Grinding
Solvent and Epoxy Fumes
Particulate adsorption
Powder Filling
Tobacco and Smoke Extraction
Chemicals
Laboratories
Technology

Accessories

Variable Speed Controller
SS-000-VSC
Control air velocities
Hour Counter
SS-000-HC
Display hours of operation
