Mounted Fume Extractor w/ Hose

Mounted Single Sentry

Model # SS-200-MSS

Mounted Fume Extractor
Loading the player...

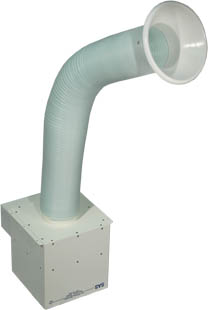

The Mounted Sentry Single fume extractor is an excellent choice for small or limited workspace environments where clean air is desired. The unit features a self-supportive flex arm that provides source capture of airborne contaminants, while mounting options can free up much needed workspace. Mounting configurations include bench-mounting, under-the table mounting, and shelf or wall mounting.

Typical applications for this unit include soldering, chemical fumes, solvent and epoxy fumes, laser fumes, light grinding, and many other procedures that involve the emission of particulate and fume.

High-quality filter media for this unit is customized depending on the application being performed, but typically includes HEPA filters [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE filters [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filtration media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia].

The Mounted Single Sentry provides an effective, quiet and economical solution to many fume extraction needs.

A dual-arm unit [SS-200-MSD] and larger model [SS-300-MSS] are also available.

Clean Air
Clean Air
Specifications
Cabinet Dimensions:
10.5"L x 10"W x 10.5"H
Arm
Dimensions:
3" or 4" Round x 28" Long
Weight:
10 lbs.
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Up to 100 CFM
Electrical:
115/1/60, .3 amps
220/1/50, .2 amps
Sound Level:
Approx. 58 dba @ 3' from inlet
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Variable Speed Controller
SS-000-VSC
Control air velocities
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
REPLACEMENT
FILTERS

100 Series (Up to 80 CFM)
200 Series (Up to 100 CFM)
300 Series (Up to 350 CFM)
400 Series (Up to 700 CFM)
450 Series (Up to 950 CFM)
500 Series (Up to 1300 CFM)
Extractor Arms (Exhaust Hoses)
Accessories (For All Products)

Additional Configurations
200 Series - Up To 100 CFM
