Benchtop Fume Extractor

Table Sentry

Model # SS-300-TS

Dual Arm Fume Extractor
Loading the player...

The Model 300 Table Sentry is a compact fume extractor that is built specifically for stationary, benchtop operations where airborne fumes need to be captured and filtered at the work surface level. This unit is available with a 1” or 4” source capture slot at the base of the unit and comes equipped with a variable speed controller.

Typical uses may include solder fume extraction, light grinding, laser fumes, solvent and epoxy fumes, medical sterilization applications, particulate, powder filling, solder pot fumes, and a variety of other applications involving chemical fumes and dust.

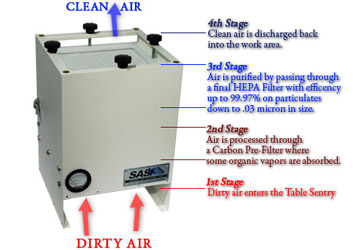

This system incorporates a powerful fan and high-quality filtration media to capture and purify harmful airborne contaminants. The most common filter media utilized in this unit are HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE filtration [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filtration media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. The Table Sentry allows multiple filter media to be housed inside the filter chamber for applications that emit both particulates and fumes.

Sentry Air's Model 300 Table Sentry fume extractor can provide an energy-efficient, quiet and economical solution for many commercial, medical, laboratory and industrial applications.

This unit is also available in a smaller model [SS-200-TS].

Specifications
Cabinet Dimensions:
15.5"L x 13"W x 18.5"H
Weight:
40 to 55 lbs.
Cabinet Material:
16 ga. carbon steel w/ polyester epoxy coating on all surfaces
Motor:
Fractional Horsepower
Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard
350 CFM High, Down to 25 CFM Low
Electrical:
115/1/60, 2 amps
220/1/50, .75 amps
Sound Level:
61 to 66 dba (Blower Speed: Low to High)
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Quick Change Pre-Filter
SS-300-QCPF
Allows easy access to pre-filters.
Remote Control Box
SS-300-RCB
Controls unit operation remotely.
Magnehelic Gage
SS-300-MAG
Monitors filter saturation
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
REPLACEMENT
FILTERS

100 Series (Up to 80 CFM)
200 Series (Up to 100 CFM)
300 Series (Up to 350 CFM)
400 Series (Up to 700 CFM)
450 Series (Up to 950 CFM)
500 Series (Up to 1300 CFM)
Extractor Arms (Exhaust Hoses)
Accessories (For All Products)

Additional Configurations 300 Series - Up To 350 CFM
