Heavy-Duty Industrial Fume Extractor - Python

Micro-Pleat Series 1 Particulate Filters

Model # SS-500-PYT-MP1 & Model # SS-550-PYT-MP1

Loading the player...

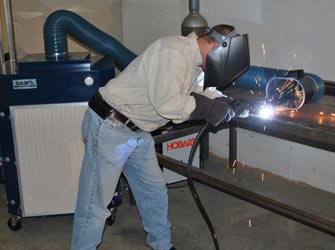

The Model 500 Python Micro-Pleat fume extractor (blue discontinued, now available in black only) is engineered for applications that require heavy-duty and high volume fume extraction. This powerful air purification system is capable of providing up to 1300 CFM of air volume and is available in various source-capture configurations. One popular option is a 12’ L by 6” diameter flame-retardant, flexible “python” hose, which is available in singular, dual, and quad options to accommodate one or more operators.

This system is equipped with cleanable Micro-Pleat Series 1 Particulate Filters and is designed for applications such as production welding (MIG, TIG, Stick, Plasma Cutting), grinding, powder weighing, some dust collection applications, multiple operator fume extraction (classroom settings, multiple soldering, welding, and brazing stations), and more. Over a year of research and testing was performed in developing this particulate media filter.

The Particulate Filters are engineered to be easily cleaned with the use of pressurized air. This form of self-contained cleaning does not require removal of the filters; the operator simply sprays air into the filter media to clean and rejuvenate them while excess dust and waste falls into the internal dust pan, allowing for simple and clean debris removal. The included magnehelic gage is an excellent tool for determining filter saturation. Once the pressure levels begin to increase, the operator can clean the filters and the pressure reduction will be noted on the gage.

The Model 500 is portable and requires no exterior-ducting or makeup air. Heavy-duty locking casters and a variety of extraction arm options make this fume extractor the perfect solution for applications that require a powerful respiratory engineering control with maneuverability. This unit comes equipped with a Variable Speed Controller and Magnehelic Gage.

The Model 500 is also available with Activated Carbon Filtration.

Heavy Duty Fume Extractor
Heavy Duty Fume Extractor
Heavy Duty Fume Extractor
Heavy Duty Fume Extractor
Heavy Duty Fume Extractor
Specifications

SS-500-PYT-MP1

Cabinet Dimensions:
30" D x 30" W x 42.5" H
Arm
Dimensions:
6" Round x 12 ft. Flame Retardant Hose w/ Magnetic Capture Hood and Handle, Optional 25 ft. Hose Available. Upgraded Python HD hood w/ inlet grill & dual magnets available.
Available Filter
Efficiencies:
(4) Micro-Pleat Series 1 Particulate Filters (MERV 16 efficiency rating) (4) 60 lb. Activated Carbon Filters (efficiency varies depending on application)
Weight:
Approximately 265lbs with Filters Installed
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Air Volume:
Up to 375 CFM High
Electrical:
115/1/60, Approximately 2.5 amps
220/1/50, Approximately 1.5 amps
Sound Level:
Approx. 65 dba @ 3' from inlet
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #61563228 Pending

SS-550-PYT-MP1

Cabinet Dimensions:
30" D x 30" W x 42.5" H
Arm
Dimensions:
6" Round x 12 ft. Flame Retardant Hose w/ Magnetic Capture Hood and Handle, Optional 25 ft. Hose Available. Upgraded Python HD hood w/ inlet grill & dual magnets available.
Available Filter
Efficiencies:
(4) Micro-Pleat Series 1 Particulate Filters (MERV 16 efficiency rating) (4) 60 lb. Activated Carbon Filters (efficiency varies depending on application)
Weight:
Approximately 280lbs with Filters Installed
Cabinet Material:
16 ga. carbon steel
Motor:
1.5 HP
Air Volume:
Up to 480 CFM High
Electrical:
15/1/60, Approximately 10.7 amps
220/1/50, Approximately 5 amps
Sound Level:
Approx. 72 dba @ 3' from inlet
Warranty:
Limited one-year warranty from date of shipment for the fan/motor. Limited two-year warranty from date of shipment on defects to parts/assembly due to materials or workmanship.
Patented Design:
U.S. PATENT #61563228 Pending

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Python Table Stand
SS-000-ATS
Adjustable Height Stand for Elevated Source Capture
