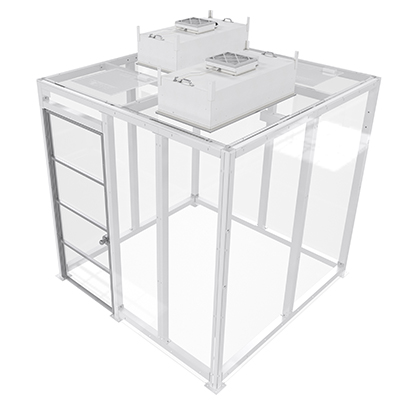

Walk-In Modular Cleanrooms

Walk-In Modular Cleanrooms, manufactured by Sentry Air Systems, are designed to offer an economical and easier to setup solution for creating a sterile positive-pressure environment. These enclosures are ideal for compounding, IV bag infusion, manufacturing electronics and semiconductors, optics, medical device production, and other manufacturing processes that require a sterile walk-in workspace.

Model # SS-XXX-XXX

Quick Ship Walk-in Modular Cleanroom

Additional Configurations

Walk-In Fume Hoods Portable Clean Rooms Positive Pressure

Request a Quote Brochure

What is a Walk-In Modular Cleanroom?

A Walk-in Modular Cleanroom utilizes modular components to construct a free-standing controlled environment, providing an easy-to-install cleanroom solution with a quick 1-week lead time. Quick Ship Walk-in Modular Cleanrooms from Sentry Air utilize up to two Fan Filter Units (FFU) to cleanse the external room air and supply filtered air to the enclosure in a downward laminar airflow. This system creates up to a static ISO Class 7 Cleanroom environment ideal for a variety of applications that require a clean enclosure. The Fan Filter Units provide up to 650 CFM each at maximum speed and utilize an energy-efficient and reduced-noise EC motor. The Quick Ship Walk-in Modular Cleanroom is currently available as an 8’ x 8’ x 8’ structure with a heavy-duty steel frame, two LED light panels, twinwall polycarbonate walls, and a swing door. Larger sizes are available as a custom order item and require 4-5 week lead time after design approval. This system allows for room-side service, a PAO port for testing, and optional remote control.

Benefits of a Walk-in Modular Cleanroom

Economical solution to create a mini cleanroom
Easy-to-setup and install
Creates up to a static ISO Class 7 cleanroom
Room-side serviceable fan filter units
EC motor that offers energy efficiency and reduced noise levels

What is an ISO Class 7 Cleanroom?

An ISO Class 7 Cleanroom meets the cleanroom standards set by ISO, which require a maximum of 2,930 particles per cubic foot of particles larger than 5 microns and 352,000 particles per cubic foot of particles larger than 0.3 microns, with at least 60 air changes per hour.

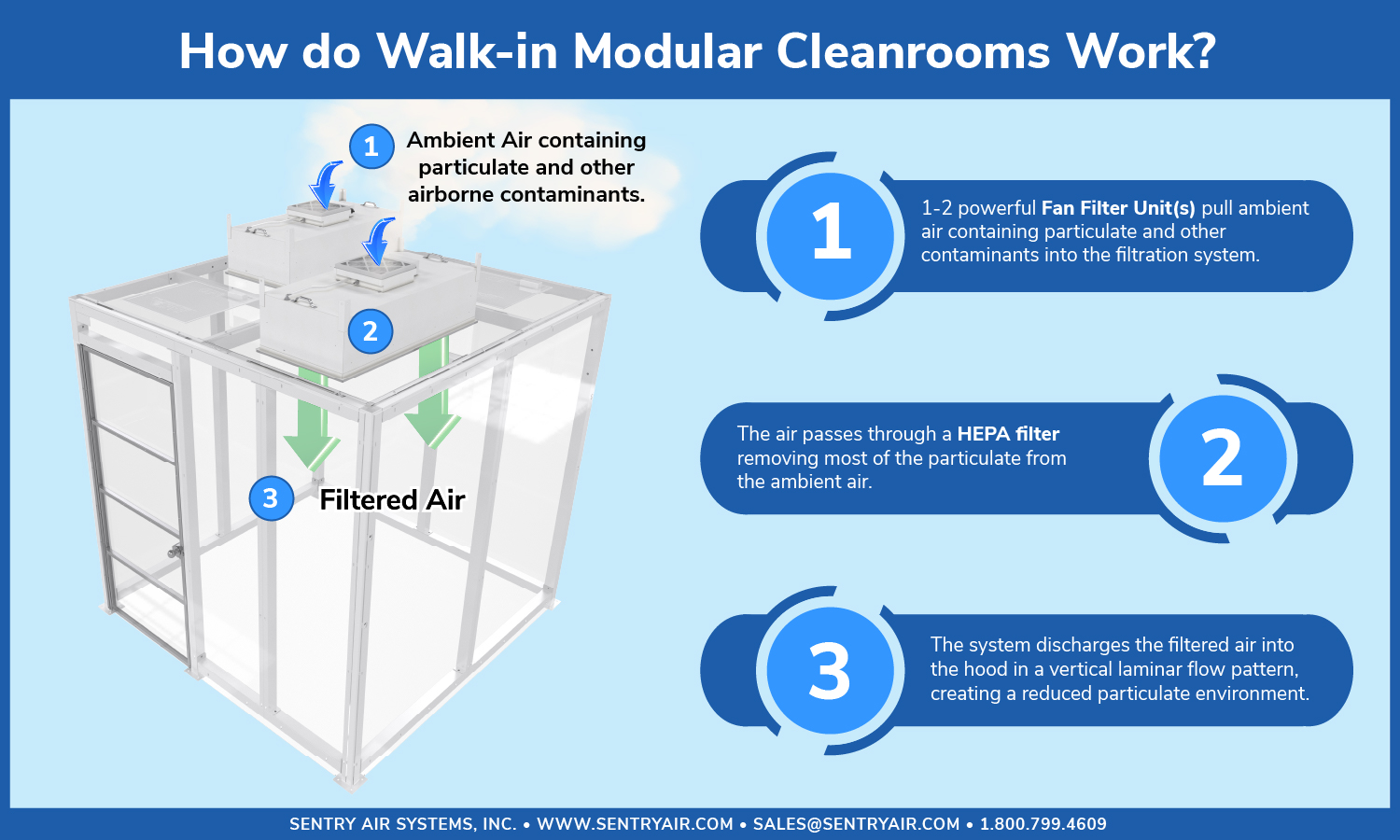

How do Walk-in Modular Cleanrooms work?

Walk In Fume Hood Infographic

Walk-in Modular Cleanrooms utilize 1-2 powerful Fan Filter Units to draw in ambient air containing airborne particulate and other contaminants. The HEPA filter(s) remove most contaminants from the air and release the filtered air into the enclosed space. This system creates up to a static ISO Class 7 cleanroom environment.

Walk-in Modular Cleanroom for USP 797

The Walk-in Modular Cleanroom meets USP 797 guidelines for use as a buffer room or secondary engineering control for Compound Sterile Preparations (CSP). Refer to USP 797 to determine requirements for Category 1, 2, or 3 CSP. Sentry Air’s Walk-in Modular Cleanroom uses 1-2 fan filter units equipped with HEPA filters to supply filtered air in a downward laminar flow, creating up to a static ISO Class 7 cleanroom environment. Where required, the Walk-in Modular Cleanroom may be placed inside of an ISO Class 8 anteroom and used with a primary engineering control such as our 17” USP 797 IV Hood to meet requirements for a category 2 or 3 CSP.

USP 797 Cleanroom Safety Guidelines

A few safety guidelines to meet USP 797 include:

Following strict cleaning and personnel garbing procedures.
Wearing proper garb.
Cleaning items before entering the cleanroom space.
Clean and disinfect areas daily when compounding is conducted.
Recertify cleanroom areas every 6 months.

Product Video

Cabinet Material:
Powder coated carbon steel

Dimensions:
48” L x 24” D x 17” H

Weight:
90 lbs per blower

Airflow:
650 CFM (max speed)

Service-side:
Room-side Serviceable

Motor:
EC Motor

Electrical:
Hardwired by an electrician 120/1/60, 2.2 amps Max power input: 175 W

Filter type:
HEPA Filter (up to 99.97% efficiency on particles 0.3 microns and larger)

Sound Level:
65 dba when running at the speed to meet ISO 7

Dimensions:
Full: 96.5” W x 96.5” D x 113” H Outer: 96.5” W x 96.5” D x 96” H Interior: 90” W x 90” D x 93” H

Door Dimensions:
36.5” W x 85” H

Frame Material:
3” x 3” powder-coated steel structural tubing

Wall Material:
1/4” clear twinwall polycarbonate

Weight:
800 – 900 lbs

ISO Rating:
ISO Class 7

LED Lights:
2’ x 2’ LED Even-Glow 4400 lumens, 40 W, 0.33 A

Warranty:
Limited one-year warranty from date of shipment on defects due to materials or workmanship.

Product Video

Material:
1.5" x 1.5" Brushed Aluminum Tubing
1/4" Clear Acrylic Sides

Height:
Up to 6 feet

Width & Depth:
Up to 6 feet

Weight:
Aluminum tubing: .9 lbs/ft
Acrylic: 1.44 lbs/sqft

Options:
Floor Mounting, Clear Anti-Static Vinyl Strip Curtains (only one side), Floor (HDPE), Collars for Ductwor

Available Filter Units:
SS-300-MS or SS-400/450-MS
Single or multiple units are available depending on hood size.
Wall mounted units with a connecting hose are also an option.

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

Quick Compare

	Heavy-Duty Steel Framed	Lighter Aluminum Framed
Material:	3" x 3" Steel Structual Tubing Powder Coated 1/4" Clear Acrylic Sides	1.5" x 1.5" Brushed Aluminum Tubing 1/4" Clear Acrylic Sides
Height:	Up to 9 feet	Up to 6 feet
Width & Depth:	Up to 20 feet	Up to 6 feet
Weight:	Steel tubing: 3.29 lbs/ft Acrylic: 1.44 lbs/sqft	Aluminum tubing: .9 lbs/ft Acrylic: 1.44 lbs/sqft
Options:	Floor Mounting, Clear Anti-Static Vinyl Strip Curtains, Floor (HDPE), Multiple Filter Units, Collars for Ductwork	Floor Mounting, Clear Anti-Static Vinyl Strip Curtains (only one side), Floor (HDPE), Collars for Ductwork
