The 30” Wide Ductless Spray Booth is a hooded enclosure specifically designed for the control of aerosol spray. This system is a negative-pressure benchtop enclosure that captures and filters aerosol particles produced by a variety of applications, including light spray painting, aerosol sprays, epoxy overspray, touch-up painting, conformal coating fumes, and a variety of other processes that release aerosol particulate and odor.
This benchtop hood utilizes a unique internal spray filter, HEPA filtration, and Activated Carbon filtration to contain hazardous particulate and unwanted odor. It is also ductless and does not require any external venting, which makes it an optimal solution for indoor environments where external venting is not practical or desired.
The 30” Wide Ductless Spray Booth features energy-efficiency and quiet and low maintenance operation. Customized Spray Booths are also available for customers with specific application requirements.
Paint Spray LEL Test (PDF) | HEPA Filter Longevity Spray Test Results (PDF)
Meets OSHA Requirements: 1910.107(b)(5)(i)
Standard 1910.107(b) is the OSHA standard for spray booths under the main standard “Spray finishing using flammable and combustible materials.” A spray booth is defined in this section as ”a power-ventilated structure provided to enclose or accommodate a spraying operation to confine and limit the escape of spray, vapor, and residue, and to safely conduct or direct them to an exhaust system.” As a manufacturer of spray booths Sentry Air seeks to comply with and abide all national regulations and standards. As no such regulations exist for ductless spray systems, Sentry Air products conform to those standards that could apply to ductless systems and exhausted systems alike, such as standard 1910.107(b)(5)i.
Testimonial from Tallahassee, Florida
"I purchased my Sentry Air Systems spray hood to control the fumes and particulates when spray painting custom radio controlled aircraft canopies. I use heavy duty automotive paint and solvents and the hood significantly reduces the odors and air borne particles. It is quiet and efficient and my clients can watch me in action in my paint studio thanks to this great air filtration system!" Read More
|
|
|

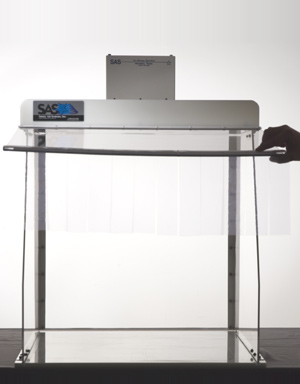

SS-330-DSH Shown |
Custom SS-470-DSH Shown |
SPECIFICATIONS
Hood Dimensions: |
O.D.: 24"D x 32"W x 32"H
I.D.: 23.5"D x 30"W x 24"H |
Hood Material: |
Sides: .250" White Acrylic
Base: .500" White High Density Polyethylene
Top: .500" Clear Polycarbonate
Front: .250" Clear Polycarbonate |
Blower Dimensions: |
13" L x 13" W x 14.5" H |
Blower Material: |
16 ga. carbon steel w/ polyester epoxy coating on all surfaces |
Total Weight: |
110 lbs. |
Motor |
Fractional Horsepower |
Electrical: |
115/1/60, 2 amps
220/1/50, .75 amps |
Sound Level |
61 to 66 dba (Blower Speed: Low to High) |
Approximate Inlet Velocities (FPM): |
Pre-filter & 99.97% HEPA Filter-130 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 115 FPM High; 20 FPM Low |
Warranty: |
Limited two-year warranty from date of shipment on defects due to materials or workmanship. |
Max Operating Temperature: |
Not to exceed 170 degrees Fahrenheit |
Patented Design: |
U.S. PATENT #5,843,197 |
|
All specifications are nominal and subject to change without notice.
Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).
Please consult the specific MSDS for questions regarding flammability limits. |
