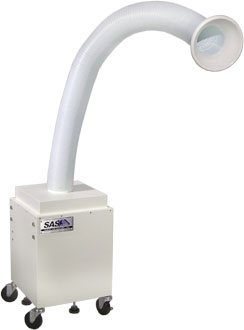

Portable Fume Extractor for Medical Procedures

Medical Sentry

Model # SS-300-MED

Compact & Portable Solution. The Model 300 Medical Fume Extractor can be customized to fit a variety of medical applications or procedures that require fume extraction and air purification. This compact and ductless system is equipped with an energy-efficient fan that pulls airborne contaminants away from the operator’s breathing zone and into the filtration system. This unit does not require exterior ducting and can move freely from place to place on locking casters. The self-supportive extraction arm provides additional flexibility, allowing the operator to position the inlet in the most effective position for their process.

Customizable Filtration Options. Several filtration options are available for this unit and are selected based on the application being performed. Options include: ULPA [up to 99.9995% efficient on particles 0.12 microns and larger], HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehydes, Ammonia]. This system can house multiple filters, which allows for both extraction of particulate and adsorption of fumes when required.

Suitable for a Variety of Medical Processes. The Model 300 Medical Fume Extractor can be a simple and effective solution for air quality enhancement in a variety of medical, laboratory and dental applications.

Pathology labs
Dental labs
Orthopedic labs
Dental technician labs
Microbiology labs
Respiratory sensitivities
Clean room applications
Surgery prep
Critical-care facilities
Laser surgery fume and odor
Odor sensitive areas
Oncology wards
Pharmacies
Hematology ICUs
General air purification
Specifications
Cabinet Dimensions:
15.5"L x 13"W x 16.5"H
Arm Dimensions:
5" Round x 68" Long flex hose
Weight:
40 lbs.
Cabinet Material:
16 ga. carbon steel w/ polyester epoxy coating on all surfaces
Motor:
Fractional Horsepower
Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard
350 CFM High, Down to 25 CFM Low
Electrical:
115/1/60, 2 amps
220/1/50, .75 amps
Sound Level:
61 to 66 dba (Blower Speed: Low to High)
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Quick Change Pre-Filter
SS-300-QCPF
Allows easy access to pre-filters.
Remote Control Box
SS-300-RCB
Controls unit operation remotely.
Magnehelic Gage
SS-300-MAG
Monitors filter saturation
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
