Compact Ducted Fume Hood

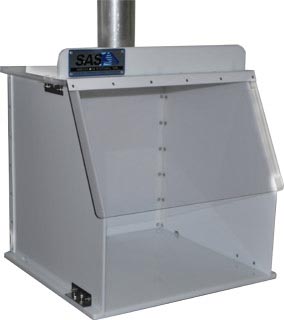

18" Wide Ducted Fume Hood

Model # SS-218-E

Loading the player...

Fit for a Variety of Applications. The 18” Wide Ducted Fume Hood is an optimal compact fume control solution for limited space environments or small-scale operations. Typical applications include research & development processes, powder containment (e.g. pharmaceutical compounding) chemical fume control, mobile laboratories and field research, light acid etching, and a variety of other processes that require particulate or chemical fume extraction. Ducted Fume Hoods are useful for applications where filtration may not be effective because of heavy volumes or filter efficiency issues. The standard materials, listed in technical specifications below, used to manufacture this hood were selected because of their chemical resistance, durability, and customizable nature.

Configurations & Custom Options: This Ducted Fume Hood can be customized for unique applications. Some options include:

Specified Materials (e.g. stainless steel, PVC, aluminum, ESD-safe materials, and more)
Custom Cutouts (e.g. sink cutout, microscope cutout)
Custom Illumination Options
Dual Entry Configuration
Specified Dimensions
Folding Hinged Lids
Accessories for Hanging Equipment

This unit includes a 4" Exhaust Collar and does not include ducting or fan. Ask Sentry Air Systems Applications Specialists for assistance in selecting a suitable fan. To view fume hoods that include a fan and filtration media, visit our Ductless Fume Hood page.

Specifications
Hood Dimensions:
O.D: 18.5"D x 20" W x 19"H
I.D.: 18"D x 18"W x 18"H
Hood Material:
Sides: .250" White Acrylic
Base: .500" White High Density Polyethylene
Top: .500" Clear Polycarbonate
Front: .250" Clear Polycarbonate
Total Weight:
Approx. 25 lbs.
Exhaust Connection:
4” OD Outlet Collar (ducting and fan excluded)
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits. The end user is ultimately responsible for conforming to all applicable exhaust ventilation regulations. Consult local, state and federal agencies regarding the suitability of your application prior to venting fumes to the environment. It is your ultimate responsibility to ensure the safety and suitability of your application. For more information, contact a local safety professional (certified industrial hygienist) for conformance and suitability.

Accessories

Fiberglass Spill Tray
Available in a variety of
sizes and specifications.
More Info
CaviCide w/ 25 Wipes
SS-025-CSW
Surface disinfectant
and decontaminant cleaner.
Velometer
SS-000-VEL
Measures air flow in feet/minute.
