Mounted Fume Extractor w/ Extraction Hose

Mounted Single Sentry

Model # SS-300-MSS

Dual Arm Fume Extractor
Loading the player...

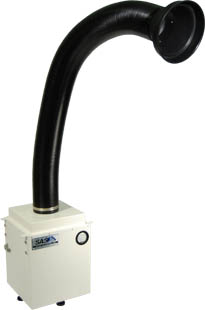

The Model 300 Mounted Single Sentry Fume Extractor is an excellent choice for small or limited workspace environments where source-capture air filtration is desired. This unit is equipped with a flame-retardant, self-supportive flex arm that can easily be moved depending on the operator’s preference. The base of this unit is capable of several mounting configurations, including bench-mounting, under-the-table mounting, and shelf or wall mounting.

This source capture fume extractor has been used for operations such as soldering, chemical fume extraction, laser fumes, solvent and epoxy fume control, powder and capsule filling, light grinding, and many other applications that involve the emission of particulate and fumes.

Several filter options are available for this unit and are selected depending on the application being performed. Standard options include HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE filtration [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. The Mounted Single Sentry allows multiple filter media to be housed inside the filter chamber for applications that emit both particulates and fumes.

Energy-efficiency and quiet operation make this fume extractor an optimal solution for many commercial, medical, laboratory and industrial applications.

A smaller model [SS-200-MSS] and portable model [SS-300-PFS] are also available. Additional flex arms are also an option.

SS-200-MSS Shown
SS-200-MSS Shown
Specifications
Cabinet Dimensions:
15.5"L x 13"W x 16.5"H
Arm Dimensions:
4" or 5" Round x 32" Long fire retardant flex hose
Weight:
40 to 55 lbs.
Cabinet Material:
16 ga. carbon steel w/ polyester epoxy coating on all surfaces
Motor:
Fractional Horsepower
Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard
350 CFM High, Down to 25 CFM Low
Electrical:
115/1/60, 2 amps
220/1/50, .75 amps
Sound Level:
61 to 66 dba (Blower Speed: Low to High)
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Quick Change Pre-Filter
SS-300-QCPF
Allows easy access to pre-filters.
Remote Control Box
SS-300-RCB
Controls unit operation remotely.
Magnehelic Gage
SS-300-MAG
Monitors filter saturation
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
