Mist Collection & Mist Vapor Extraction

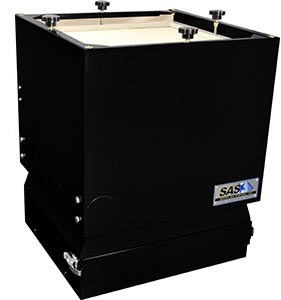

Mist Collector

Model # SS-400-MIST & Model # SS-450-MIST

High Flow Mounted Sentry
Loading the player...

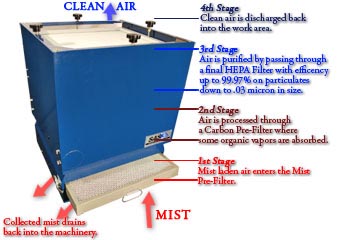

The Model 400 and Model 450 Mist Collector is designed for mist collection on enclosed machinery and most commonly CNC mist elimination. In addition, this high-powered mist collector may be an excellent choice for other systems that produce synthetic coolant mist, water mist, and oil mist. This system allows for easy integration because of its small footprint and convenient mounting options [mounting brackets are included]. This system is typically flush-mounted to the top of CNC machines without major alterations to the machinery itself. This patented mist collector offers high efficiency, quiet operation, low power consumption, and minimal maintenance. No external exhausting or ducting is required with this recirculating mist eliminator.

The unique washable mist filter collects mist vapors and conveniently drains it back into the machinery itself and may be reusable depending upon the application. HEPA [up to 99.97% efficient on particles 0.3 microns and larger] and ASHRAE filtration media [95% efficient on particles 0.5 microns and larger] are also typical filter options for this system.

The Model 400 and Model 450 Mist Collector can provide an effective and economical solution for CNC machines, milling, grinding, and various other applications requiring mist collection.

Two smaller models [SS-200-MIST & SS-300-MIST] are available.

Specifications

SS-400-MIST

brochure
Cabinet Dimensions:
22.5"L x 20"W x 25.25"H
Inlet options 4”, 5”, 6”, 10”
Weight:
50 lbs to 100 lbs
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard
700 CFM High, Down to 50 CFM Low
Electrical:
115/1/60, 2.5 amps
220/1/50, 1.5 amps
Sound Level:
Approx. 60 dba @ 3'
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

SS-450-MIST

brochure
Cabinet Dimensions:
22.5"L x 20"W x 25.25"H
Inlet options 4", 5", 6", 10"
Weight:
62 lbs to 112 lbs.
Cabinet Material:
16 ga. carbon steel
Motor:
1.5 HP
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard
950 CFM High, Down to 50 CFM Low
Electrical:
115/1/60, 10.7 amps
220/1/50, 5.35 amps
Sound Level:
Approx. 72 dba @ 3'
Warranty:
Limited six-month warranty from date of shipment for the fan/motor assembly. Limited two-year warranty from date of shipment on defects to parts/assembly due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.
