CNC Machine Mist Collection

Mist Collector

Model # SS-200-MIST

The Model 200 Mist Collector is a compact and powerful air cleaner that is designed for mist collection on enclosed machinery. The most common application for this system is CNC mist elimination. In addition, this compact mist collector may be an excellent choice for other systems that have coolant mist, water mist, and oil mist applications. This unique patented device offers high efficiency, quiet operation, low power consumption, and minimal maintenance. No external exhausting or ducting is required with this system.

The unique washable mist filter collects mist vapors and conveniently drains it back into the machinery itself and may be reusable depending upon the application. HEPA [99.97% efficient on particles 0.3 microns and larger] and ASHRAE filtration media [95% efficient on particles 0.5 microns and larger] is available with this system.

The Model 200 Mist Collector can provide an effective and economical solution for CNC machines, milling, grinding, and various other applications requiring mist collection.

Larger Mist Collector models are available [SS-300-MIST & SS-400-MIST].

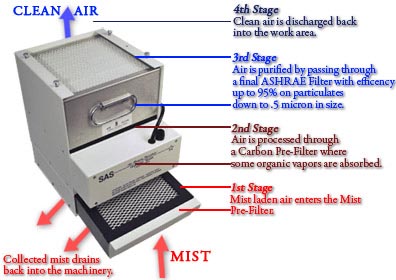

Clean Air
Specifications
Cabinet Dimensions:
10.5"L x 9"W x 11"H
Weight:
15 lbs.
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Up to 100 CFM
Electrical:
115/1/60, .3 amps
220/1/50, .2 amps
Sound Level:
Approx. 55 dba @ 3' from inlet
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Variable Speed Controller
SS-000-VSC
Control air velocities
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
REPLACEMENT
FILTERS

100 Series (Up to 80 CFM)
200 Series (Up to 100 CFM)
300 Series (Up to 350 CFM)
400 Series (Up to 700 CFM)
450 Series (Up to 950 CFM)
500 Series (Up to 1300 CFM)
Extractor Arms (Exhaust Hoses)
Accessories (For All Products)

Additional Configurations
200 Series - Up To 100 CFM
