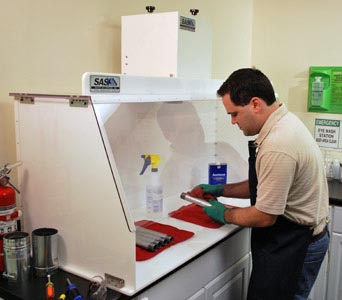

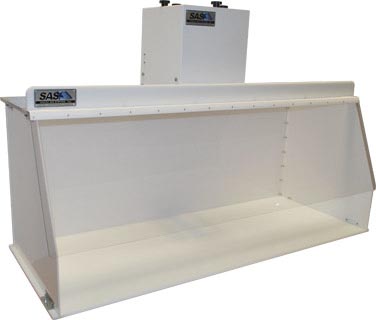

70" Wide Ductless Fume Hood
SS-370-DCH-S




The 70” Wide Ductless Fume Hood combines powerful air flow with a sturdy and compact enclosure for optimal respiratory and environmental protection. This fume hood is designed to pull harmful particulate up and away from the operator’s breathing zone and into the filter chamber. Depending on the application, this chamber houses either HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger and made with flame-retardant materials], ASHRAE filtration [up to 95% efficient on particles 0.5 microns and larger and made with flame-retardant materials] Activated Carbon, or specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. Variable Speed Control and a Fluorescent Light come standard with this unit.

Typical uses for this fume hood include chemical fume control, pharmaceutical compounding containment, soldering applications, light dust removal, biological applications, solvent or epoxy use, and many more applications that require the removal of fumes and particulate.

The 70” Ductless Fume Hood provides an energy efficient and economical solution for many commercial, medical, laboratory and industrial applications that require a containment hood. For additional visibility, a transparent version is available at extra cost.

SPECIFICATIONS

Hood Dimensions:

O.D: 24"D x 72W" x 25"H
I.D.: 23.5"D x 70"W x 24"H

Hood Material:

Sides: .250" White Acrylic
Base: .500" White High Density Polyethylene
Top: .500" Clear Polycarbonate
Front: .250" Clear Polycarbonate

Blower Dimensions:

13" L x 13" W x 14.5" H

Blower Material:

16 ga. carbon steel w/ polyester epoxy coating on all surfaces

Total Weight:

Approx. 155lbs

Motor:

Fractional Horsepower

Electrical:

115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:

61 to 66 dba (Blower Speed: Low to High)

Available Filter Efficiencies: HEPA Filter - Up to 99.97% efficient on particles 0.3 microns and larger.
ASHRAE Filter - Up to 95% efficient on particles 0.5 microns and larger.
ULPA Filter - Up to 99.9995% efficient on particles 0.12 microns and larger.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Approximate Inlet Velocities:

Pre-filter & 99.97% HEPA Filter - 100 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 70 FPM High; 20 FPM Low

Warranty:

Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Max Operating Temperature:

Not to exceed 170 degrees Fahrenheit

Patented Design:

U.S. PATENT #5,843,197

All specifications are nominal and subject to change without notice.
Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).
Please consult the specific MSDS for questions regarding flammability limits.
