Made in the USA
Wall Mounted Fume Extractor
Wall Mounted Fume Extractors, manufactured by Sentry Air Systems, provide the ultimate modularity for removing fumes, dust, and particulates from your working environment; these air filtration systems come equipped with high-efficient filters and a powerful motor to pull harmful contaminants away from your application.
200 Series
Model # SS-XXX-XXX
Unit Configurations Quick Compare
Additional Configurations
What is a wall mounted fume extractor?
A wall mounted fume extractor is a uniquely engineered air filtration system built specifically for small or limited workspace environments where air purification is desired. These fume extractors are typically self-contained and mounted to a wall, welding booth, or stand to offer ease of use.
How does a wall mounted fume extractor work?
Is your application appropriate for a Wall Mounted Fume Extractor?
Wall mounted fume extractors are usually found in welding and soldering settings but also offer modularity for any application that could require space or an air filtration unit away from the application such as:
- Soldering
- Welding
- Chemicals
- Grinding (Light)
- Solvent and Epoxy Fumes
- Dust
- Pharmaceutical
- Buffing
- Refinishing
- Brazing
- Commercial
Benefits of a wall mounted fume extractor
Sentry Air fume extractors combine quiet operation, energy-efficient technology, and a unique mounting option that creates an effective solution for many applications that require fume and particulate removal.

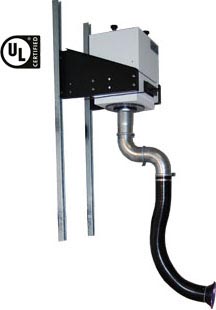

Installation is made easy with the included wall-mounting kit and will take up minimal space; when mounted to the wall, the arm features a 62.5” swivel radius; in limited space environments, this unit frees up valuable benchtop and floor space.
200 Series
Product Video
Chemicals SS-200
Cabinet Dimensions:
- 10.5"L x 8"W x 10.5"H
Cabinet Material:
- 16 ga. carbon steel
Motor:
Fractional Horsepower
Total Weight:
15 lbs.
Air Volume:
Up to 80 CFM
Electrical:
115/1/60, .3 amps
220/1/50, .2 amps
Sound Level:
Approx. 56 dba @ 3' from inlet
Patented Design:
U.S. PATENT #5,843,197
Particulate SS-225
Cabinet Dimensions:
- 10.5"L x 8"W x 10.5"H
Cabinet Material:
- 16 ga. carbon steel
Motor:
Fractional Horsepower
Total Weight:
15 lbs.
Air Volume:
Up to 91 CFM
Electrical:
115/1/60, .46 amps
Sound Level:
Approx. 64 dba @ 3' from inlet
Patented Design:
U.S. PATENT #5,843,197
Product Video
Cabinet Dimensions:
- 13"L x 13"W x 16.5"H
Cabinet Material:
- 16 ga. carbon steel
Motor:
Fractional Horsepower
Total Weight:
50 to 80 lbs
Arm Dimensions:
4" Round x 32" Long
Flex Arm Working Area:
62.5" Swivel Radius
Air Volume:
Up to 100 CFM350 CFM High, Down to 50 CFM Low
Electrical:
115/1/60, 2 amps
220/1/50, .75 amps
Sound Level:
61 to 66 dba (Blower Speed: Low to High)
Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745
Product Video
Chemicals SS-400
Cabinet Dimensions:
- 21"L x 20"W x 19.5"H
Cabinet Material:
- 16 ga. carbon steel
Arm Dimensions:
- 4" Round x 32" Long fire retardant flex hose
Flex Arm Working Area:
62.5" Swivel Radius
Total Weight:
60 lbs to 110 lbs.
Air Volume:
Variable Speed Control Standard
700 CFM High, Down to 50 CFM Low
Electrical:
115/1/60, 2.5 amps
220/1/50 or 60, 1.5 amps
Sound Level:
60 dba @ 3 ft.
Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745
Particulate SS-450
Cabinet Dimensions:
- 22.5"L x 20"W x 21.75"H
Cabinet Material:
- 16 ga. carbon steel
Arm Dimensions:
- 4" Round x 32" Long fire retardant flex hose
Flex Arm Working Area:
62.5" Swivel Radius
Total Weight:
62 lbs to 112 lbs.
Air Volume:
Variable Speed Control Standard
877 CFM High, Down to 0 CFM Low
Electrical:
115/1/60, 5.2 amps
Sound Level:
71 dba @ 3 ft.
Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745
Product Video
Fan Dimensions:
- 45"L x 24"W x 24"H
Flex Arm:
- 4" Dia. w/ 7" O.D. Round Source Capture Hood
Flex Arm Working Area:
62.5" Swivel Radius when unit is mounted
Arm Dimensions:
3" Round x 58" Long
Total Weight:
15 lbs.
Motor:
Fractional Horsepower
Air Volume:
160 CFM (High) to 50 CFM (Low)
Sound Level:
Approx. 61-66 dba @ 3’
Electrical:
115/1/60, Less than one amp
Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #61,563,228 Pending
Quick Compare
|
200 Series
|
300 Series
|
400 Series
|
Fan Powered Extractor Arm
|
|
|---|---|---|---|---|
| Cabinet Dimensions: | - 10.5"L x 8"W x 10.5"H | - 13"L x 13"W x 16.5"H | - 22.5"L x 20"W x 19.5"H | - 45"L x 24"W x 24"H |
| Weight: | 15 lbs. | 50 to 80 lbs | 51 lbs to 100 lbs. | 15 lbs. |
| Electrical |
115/1/60, .3 amps 220/1/50, .2 amps |
115/1/60, 2 amps 220/1/50, .75 amps |
400 Series: 115/1/60, 2.5 amps 220/1/50, 1.5 amps 450 Series: 115/1/60, 10.7 amps 220/1/50, 5.35 amps |
115/1/60, Less than one amp |
| Sound Level | Approx. 56 dba @ 3' from inlet | 61 to 66 dba (Blower Speed: Low to High) | 60 dba @ 3 ft. from hood inlet | Approx. 61-66 dba @ 3’ |
Accessories
SS-300-QCPF
Allows easy access to pre-filters.
SS-300-RCB
Controls unit operation remotely.
SS-300-MAG
Monitors filter saturation.
Configurations
SS-000-EA4
